MIDI SET
Wheelchair Ramp Set
Item No.:
85305SET
Series:
DEFENDER MIDI
Versions:
non-slip screwable ramp for Defender Midi cable bridge systems made of recyclable polyurethane
safe and comfortable crossing for wheelchairs, walkers, walking aids, trolleys etc.
Drive-over width 80 cm
set includes 1 pre-drilled cable bridge with blue polyurethane cover, 6 ramp elements and 4 side slopes
resistant to oil, acid, solvents and petrol
not suitable for motor vehicles
all components also available separately
non-slip screwable ramp for Defender Midi cable bridge systems made of recyclable polyurethane
safe and comfortable crossing for wheelchairs, walkers, walking aids, trolleys etc.
Drive-over width 80 cm
set includes 1 pre-drilled cable bridge with blue polyurethane cover, 6 ramp elements and 4 side slopes
resistant to oil, acid, solvents and petrol
not suitable for motor vehicles
all components also available separately
Description
The perfect complement to DEFENDER® MIDI
The DEFENDER® WHEELCHAIR RAMP is a convenient wheelchair ramp for DEFENDER® MIDI cable protectors which is also suitable for mobility aids, trolleys and roller boards. The set includes a DEFENDER® MIDI cable protector with blue cover and necessary floor-installation holes, 6 ramp modules and 4 edge sections. The DEFENDER® wheelchair ramp is made from oil-, acid- and petrol-resistant TPU (thermoplastic polyurethane). Please note: The DEFENDER® wheelchair ramp is not suitable for use by motor vehicles.
Specifications
General
| Product type | Cable Protector Accessories |
| Type | Wheelchair-ramp System |
| Weight | 31,4 kg |
85306 - Defender MIDI SET Ramp Module
| Product type | Cable Protector Accessories |
| Type | Wheelchair-ramp System |
| Color | blue |
| Material | Polyurethane |
| Width | 250 mm |
| Weight | 4,91 kg |

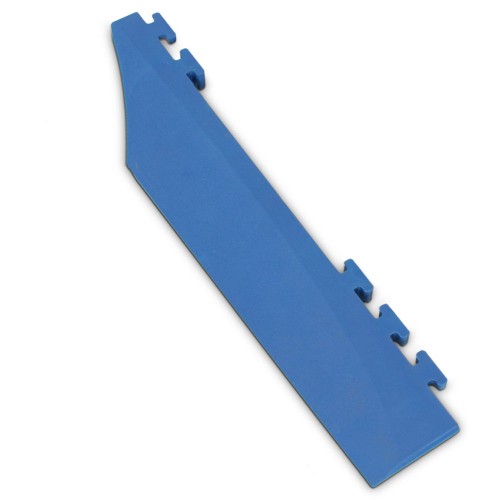

85307L - Defender MIDI SET Left Extremity Piece
| Product type | Cable Protector Accessories |
| Type | Wheelchair-ramp System |
| Color | blue |
| Material | Polyurethane |
| Width | 90 mm |
| Weight | 0,63 kg |
85307R - Defender MIDI SET Right Extremity Piece
| Product type | Cable Protector Accessories |
| Type | Wheelchair-ramp System |
| Color | blue |
| Material | Polyurethane |
| Width | 90 mm |
| Weight | 0,63 kg |
85300BLUE - Defender MIDI SET Cable Protector 5-channel blue for 85305SET Wheel Chair Ramp
| Product type | Cable Protectors |
| Type | 5-channel |
| Material | Polyurethane |
| Length | 1200 mm |
| Height | 52 mm |
| Width | 542 mm |
| Channels | 5 |
| Width channel 1 | 34 mm |
| Height channel 1 | 36 mm |
| Width channel 2 | 34 mm |
| Height channel 2 | 36 mm |
| Width channel 3 | 34 mm |
| Height channel 3 | 36 mm |
| Width channel 4 | 34 mm |
| Height channel 4 | 36 mm |
| Weight | 13,4 kg |
| Width channel 5 | 34 mm |
| Height channel 5 | 36 mm |
| Max load | Approx. 5 t on a surface area of 25 x 30 cm |
| Chemical resistance | Short-term contact with solvents |
