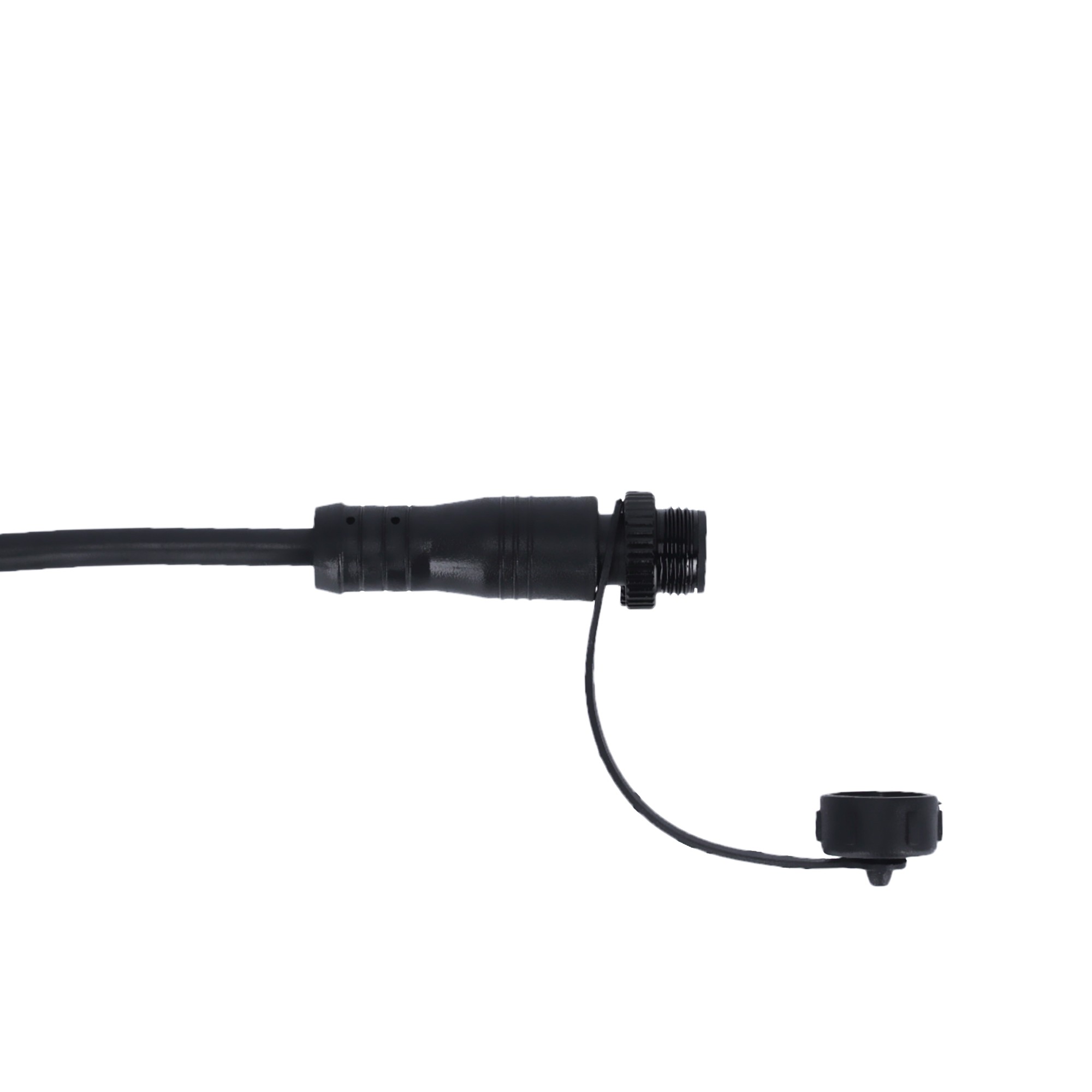

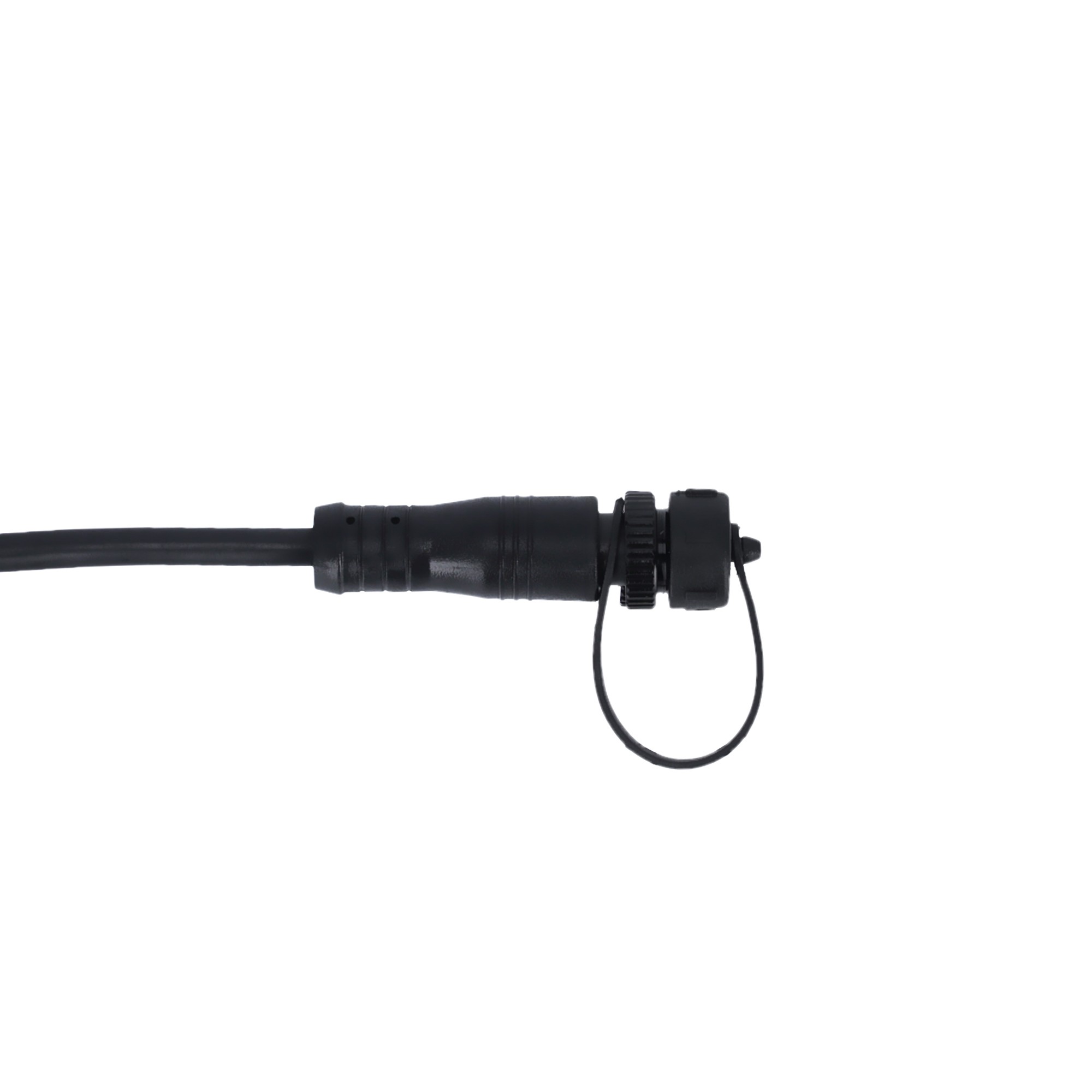

DEFENDER LUX | Powerconnector | 3m Power supply unit 24V | 3m connection cable | for DEFENDER LUX FLEX Light

Item No.: 85LUXPC

Series: Lux

Versions:

Ideal addition to DEFENDER LUX cable protectors

270° all-round illumination – for maximum signalling effect and safety

Homogeneous, warm white light distribution for clear visual guidance

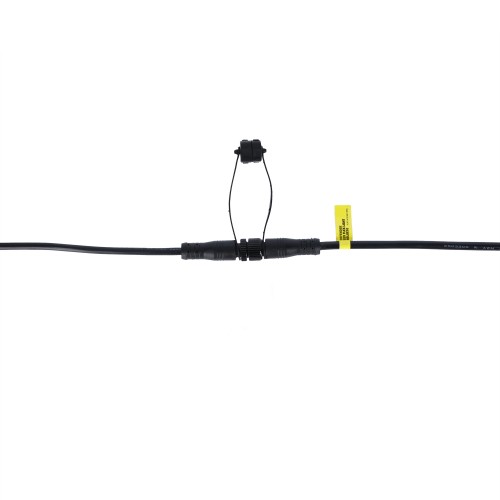

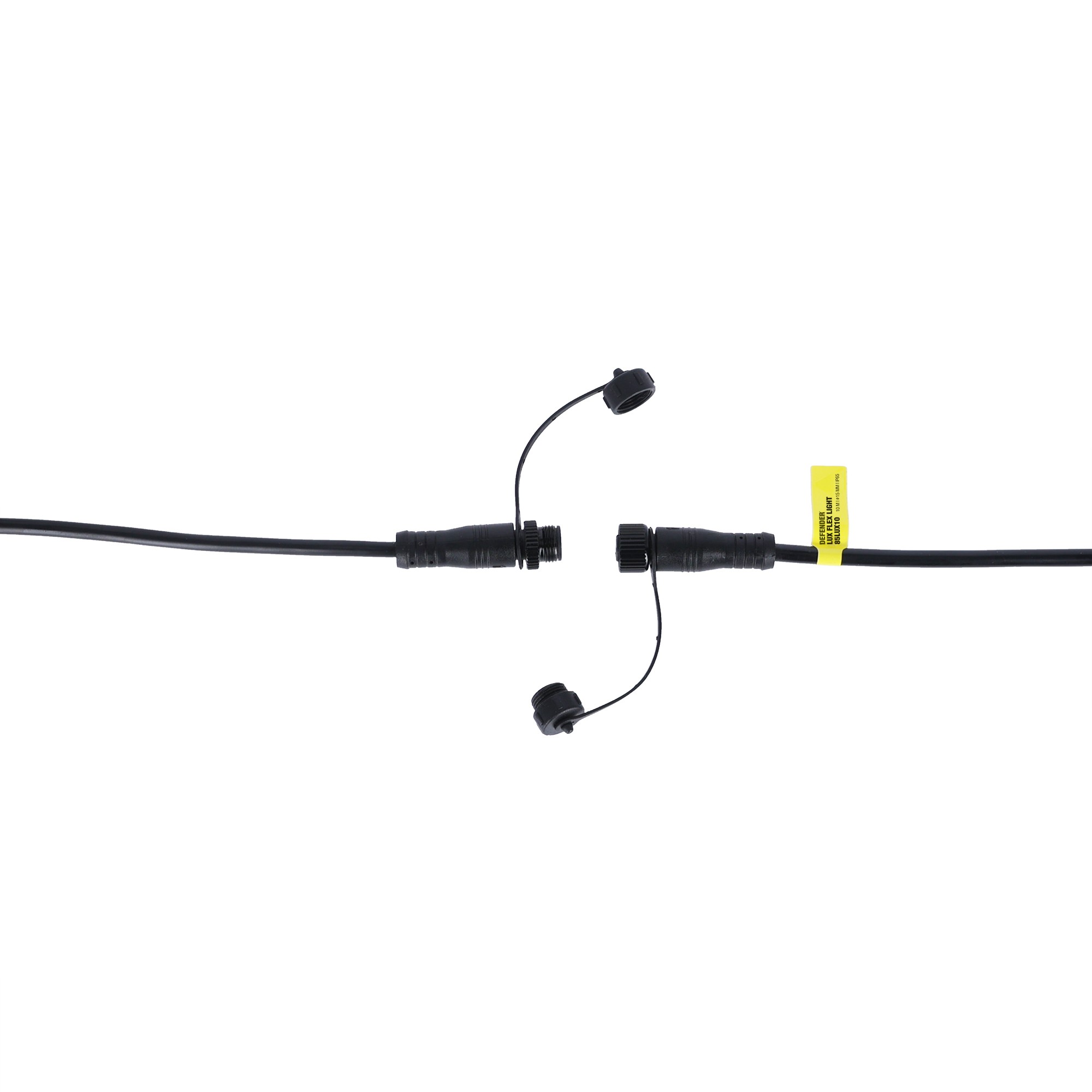

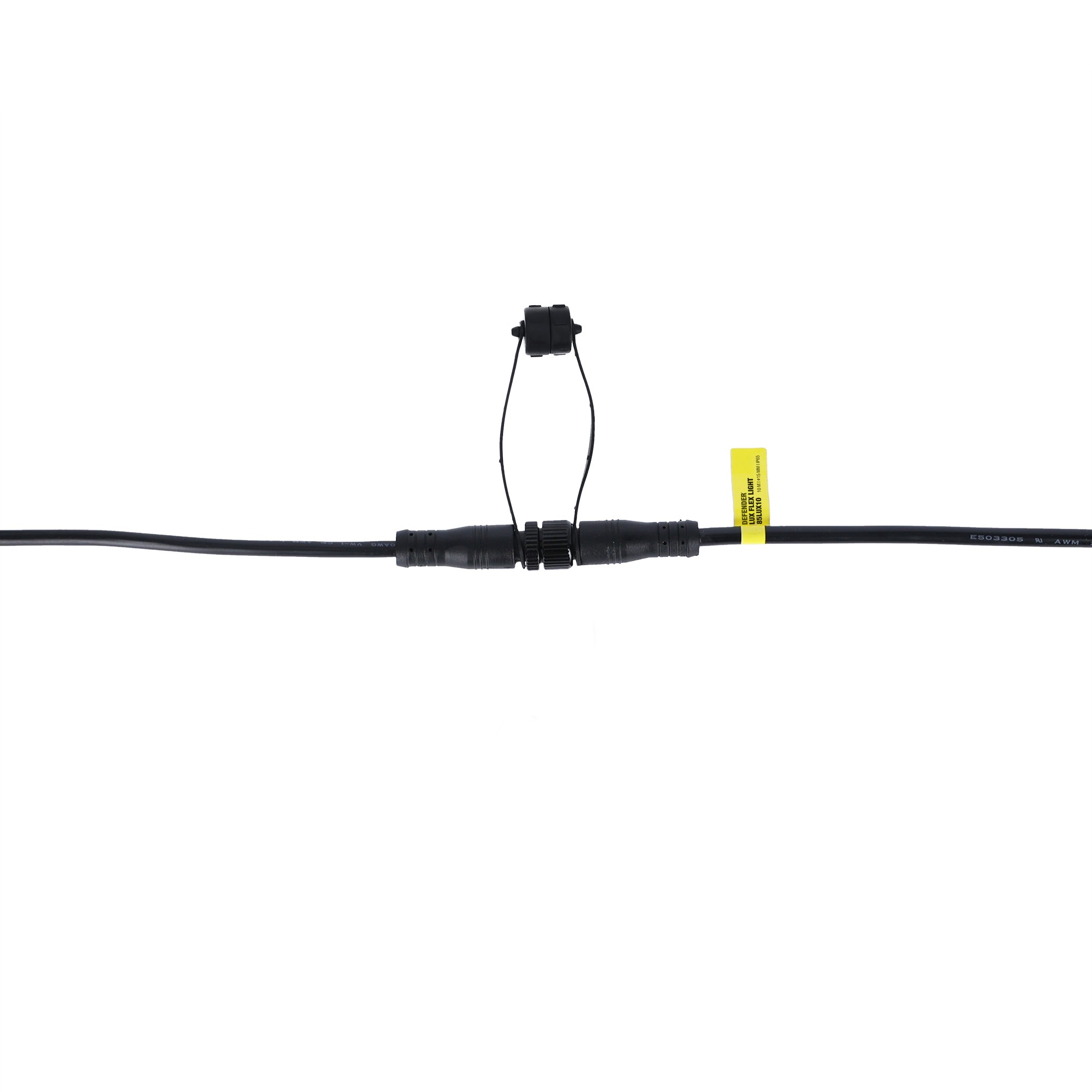

Plug-and-play connector system – expandable up to a total length of 30 m

IP65-certified – protected against dust and water jets for outdoor use

Buy

Search now

Series

Display all

Series

Contents and categories

Search suggestions

Display all results

Ideal addition to DEFENDER LUX cable protectors

270° all-round illumination – for maximum signalling effect and safety

Homogeneous, warm white light distribution for clear visual guidance

Plug-and-play connector system – expandable up to a total length of 30 m

IP65-certified – protected against dust and water jets for outdoor use

Description

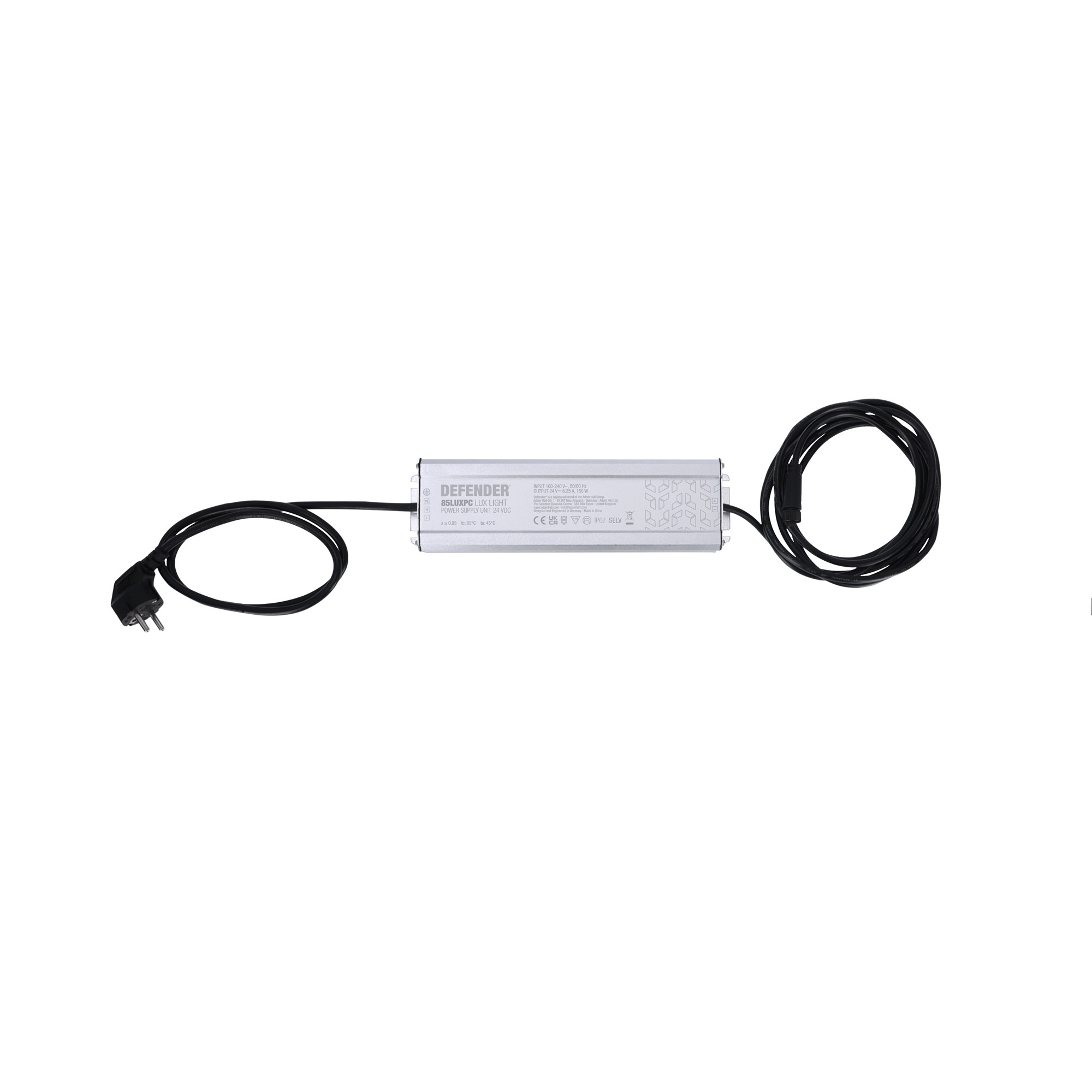

The 24 V power supply unit with 3 m connection cable is the necessary power source for the DEFENDER LUX FLEX Light and enables quick, straightforward commissioning. Combined with the 270° all-round light emission and the homogeneous warm white light distribution of the LUX FLEX Light, it ensures maximum signalling effect, clear visual guidance and increased safety. Thanks to the plug-and-play connector system, extendability up to a total length of 30 m and IP65 certification, the system is protected against dust and water jets and is ideal for demanding outdoor use.

Specifications

General

Material

Aluminium

Colour

Silver

Cable colour

Black

Mains operation

Operation voltage

24 V DC (external power supply)

Power supply type

External switched-mode power supply (SMPS)

Mains connector

Schuko plug male

Input cable length

1 m

Output cable length

3 m

Output voltage

24 V DC

Max. output power

150 W

Max. output current

6.25 A

Environmental

Protection class

IP65

Application area

Indoor and outdoor

Dimensions & weight

Weight

1.6 kg
