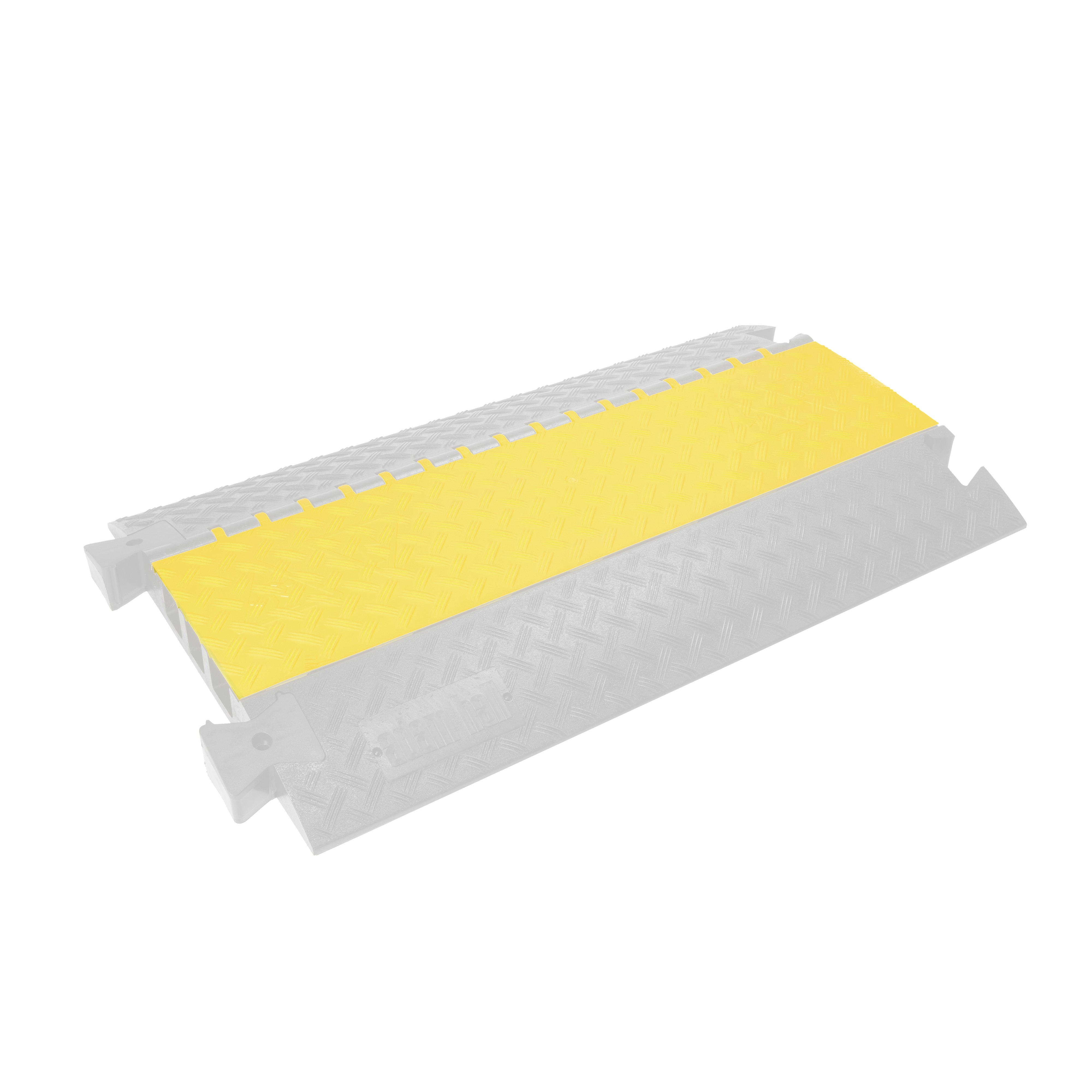

3 LID | LUX Replacement lid | for 3 | translucent
Item No.:
85099LUX
Series:
3
Versions:
- Highly transparent yellow tinted polyurethane cover with high warning effect and secure locking mechanism
- Can be used with tube light (DEFENDER LUX Tube Light)

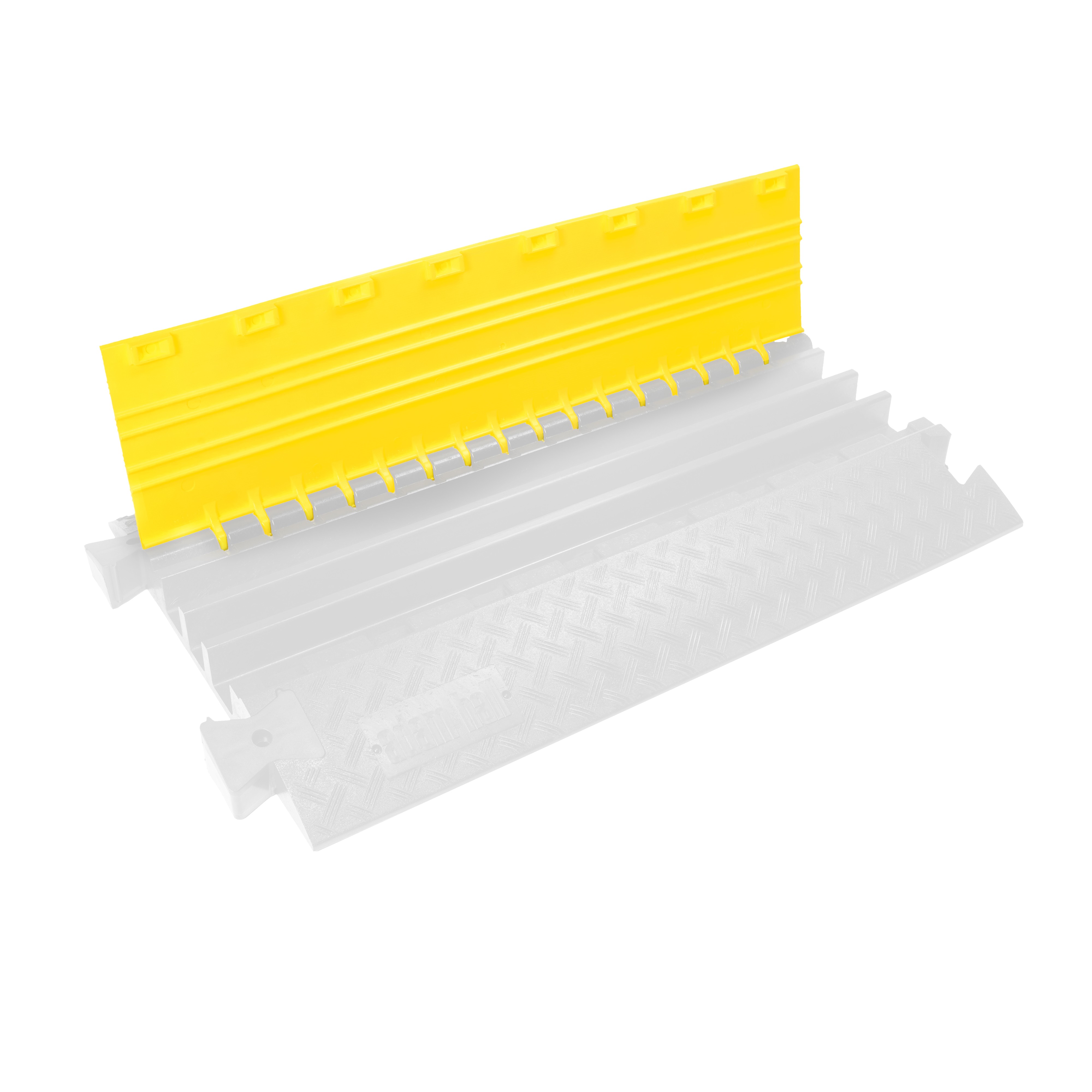

- Patented self-cleaning lid hinge
- Load capacity approx. 5 tonnes / 25 x 30 cm
- Fire protection class E in accordance with DIN EN 13501-1 (B-s1 pending)
- Resistant to oil, petrol and short-term contact with solvents
- TÜV Süd certified
- Highly transparent yellow tinted polyurethane cover with high warning effect and secure locking mechanism
- Can be used with tube light (DEFENDER LUX Tube Light)
- Patented self-cleaning lid hinge
- Load capacity approx. 5 tonnes / 25 x 30 cm
- Fire protection class E in accordance with DIN EN 13501-1 (B-s1 pending)
- Resistant to oil, petrol and short-term contact with solvents
- TÜV Süd certified
Specifications
General
Material
TPU (Thermoplastic polyurethane)
Surface structure
Ribbed
Colour
Yellow
Lid colour
Transparent
Maximum load (on 25 x 30 cm)
5 t
Max. Passing speed
7 km/h
Chemical resistance
Petrol,
Solvents (short-term contact),
Oil
Hardness range (±4 Shore A)
88 Shore A
Cable ducts
Duct length (effective length)
1,000 mm
Environmental
Fire protection class per DIN 4102-1
B2
Fire protection class per EN 13501-1
E
Inflammability (UL 94)
V-2,
HB
Ambient temperature
-30 - 60 °C
Dimensions & weight
Length
1,005 mm
Width
295 mm
Height
40 mm
Weight
2.7 kg
